Musicmachine 3

MB&F + Reuge

Overview

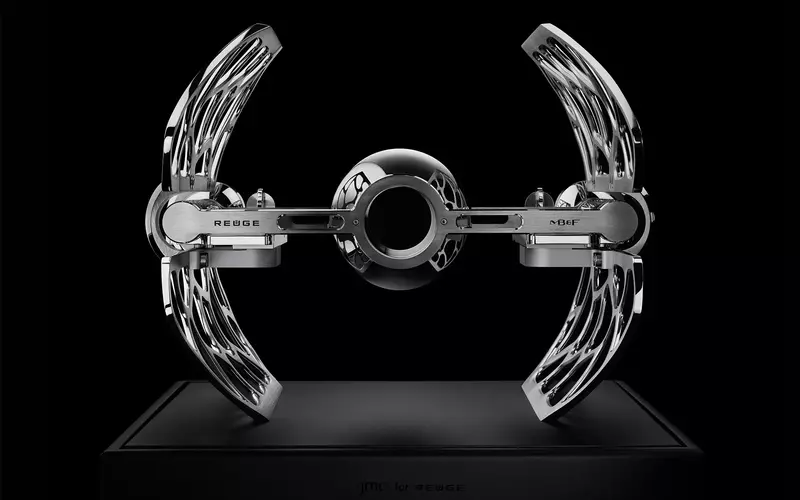

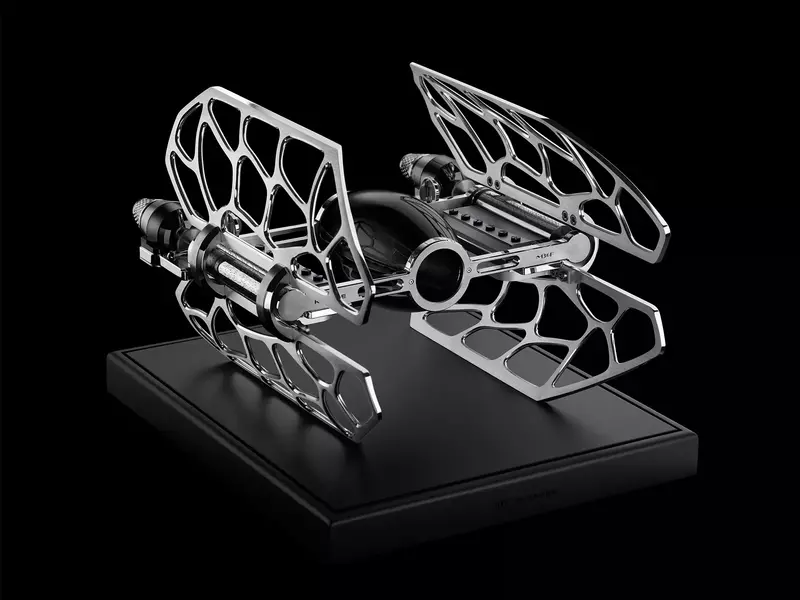

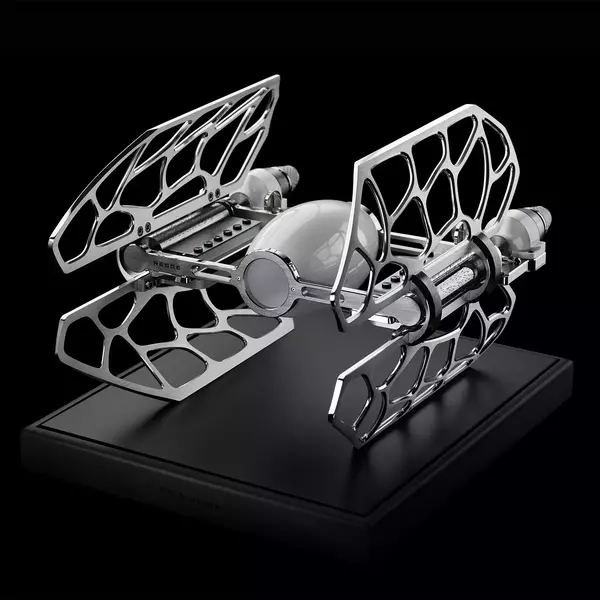

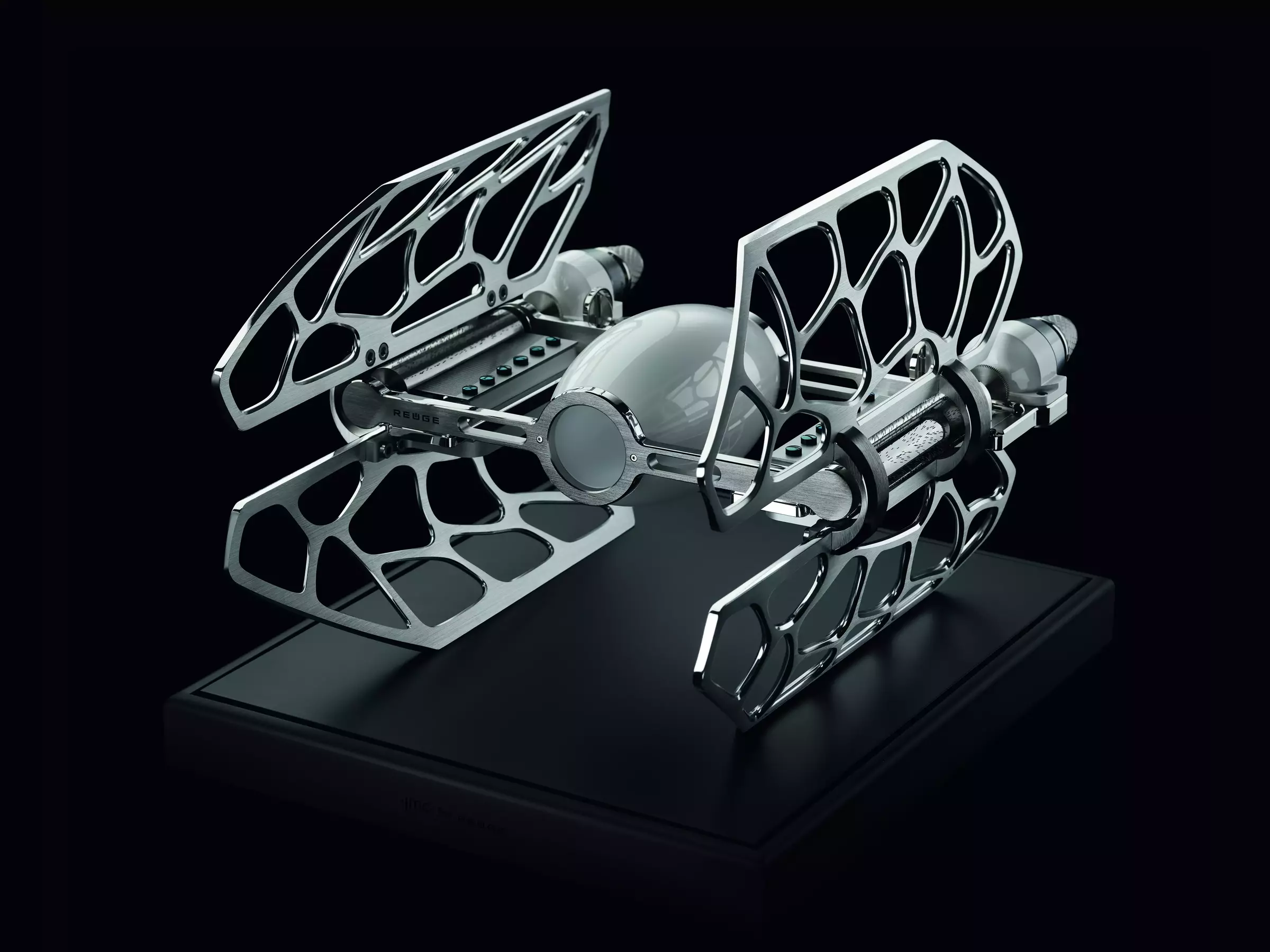

MusicMachine 3 may appear to come from a galaxy far away in the future; however, its origins are much older and much closer to home. MusicMachine 3 features all of the traditional elements of a beautifully arranged, high-end mechanical music box; not really a surprise since it was developed and crafted according to MB&F's design by Reuge, the last remaining producer of high-end music boxes in the world today.

MusicMachine 3’s design with those lattice-like vertical wings support and protect the dual music cylinders, each playing three melodies: the theme tunes from Star Wars, Mission Impossible, and James Bond on the right and The Godfather, Merry Christmas Mr. Lawrence, and The Persuaders on the left.

more pictures in press section

the machine

Main hull – resonance base

  • Main body: aluminium with lacquer finish
  • Matte sections: protective varnishing
  • Gloss sections: White UV-resistant lacquer; black lacquer or ‘chrome’ anodised finish depending on version
  • Resonant amplifying base by JMC Lutherie: 350-year-old resonance spruce with 21st century composite materials like NomexTM honeycomb Kevlar.

Tail section

  • MusicMachine 3 features two 3.72 movements (3 refers to number of melodies on each cylinder; 72 refers to number of notes on each comb); one movement is ‘right’ configured; one movement is ‘left’ configured (they rotate in opposite directions)
  • Main plate: polished brass decorated with Geneva waves. The main plate holds both movements; each movement includes a mainspring, cylinder, comb, and regulator

Cylinders

  • Start/stop and repeat/continue functions
  • 3 melodies per cylinder
  • Length of each melody: 35 seconds
  • Power reserve per cylinder: 15 minutes

Dimensions and weight

  • Dimensions (with soundboard base): 400 x 340 x 280 mm
  • Total weight: Approximately 6 kg
download manual

The combs

The two vertical combs look like air vent grilles on either side of the vessel’s main body. Each comb contains the bespoke selection of 72 notes chosen by the Reuge musician in accordance with the three melodies that cylinder will play.

The cylinders

The beautifully hand-finished cylinders gleam like a pair of imposing reactors atop MusicMachine 3’s main hull. The cylinders contain the scores of the melodies, with as many as 1,400 precision-placed pins that pluck the teeth of the comb as the cylinder revolves.

The challenge of melodies

Once MB&F had confirmed the melodies; it was over to Reuge to create them mechanically. A Reuge musician examined the music and identified the most recognisable passages, then set about recreating these passages for the music box.

JMC LUTHERIE

JMC LUTHERIE

One of the biggest challenges of MusicMachine 3 was in amplifying the sound. An ingenious solution was developed by Jeanmichel Capt of JMC Lutherie, who created a bespoke soundboard featuring NomexTM – a type of honeycomb-structured Kevlar – sandwiched between two resonant 350-year-old spruce membranes. Only one in 10,000 spruce trees has the exceptional acoustic properties required. Selected trees are cut down in November when sap flow is minimal and the timber is then dried for five to ten years. On MusicMachine 3, energy is transmitted from the vibrating teeth down though the vertical side wings to the resonance base, which not only amplifies the sound, but underlines the beauty of the music.

www.jmclutherie.com

Reuge

Reuge

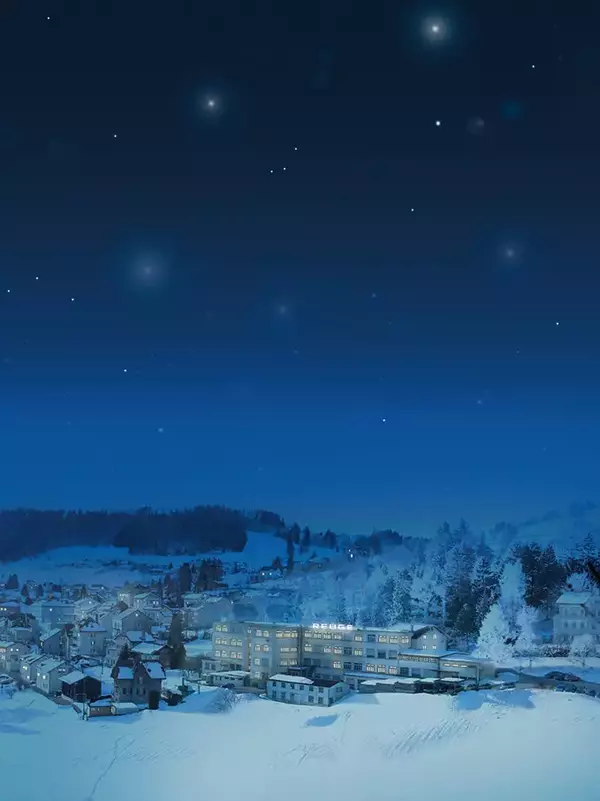

Based in Sainte-Croix (Switzerland) with nearly 150 years of expertise and experience, Reuge is positioned as the only premier producer of music boxes in the world today, creating mechanical music boxes that are technically, acoustically and aesthetically superlative. While Reuge has a comprehensive collection of both classical and contemporary music boxes, the brand also prides itself on its ability to create bespoke pieces or limited series (like the MusicMachines).

Reuge is a master of music boxes thriving on ‘thinking outside the box’; the Reuge mentality is to respect tradition, but at the same time move forward with beautiful contemporary music boxes for the 21st century.

www.reuge.ch

inspiration

inspiration Maximilian Büsser and Kurt Kupper CEO of REUGE)

MB&F celebrated its tenth anniversary in 2015 with the tagline “A creative adult is a child who survived.” One film that children (and many adults) of all ages love is Star Wars – and who could forget the frantic swarms of the Imperial fleet's TIE fighters as they battle the Alliance. The TIE fighter-inspired MusicMachine 3 is proof positive that both the child and the Force are still going strong within MB&F.

The music is powered by two independent movements mounted on the two tail sections. Each movement has its own winding key (disguised as thrusters), a mainspring barrel, horizontal cylinder with pins, and comb with hand-tuned teeth sounding each note. Air regulators in the form of circular fans (resembling rotating radar dishes) govern the unwinding speed and music tempo.
